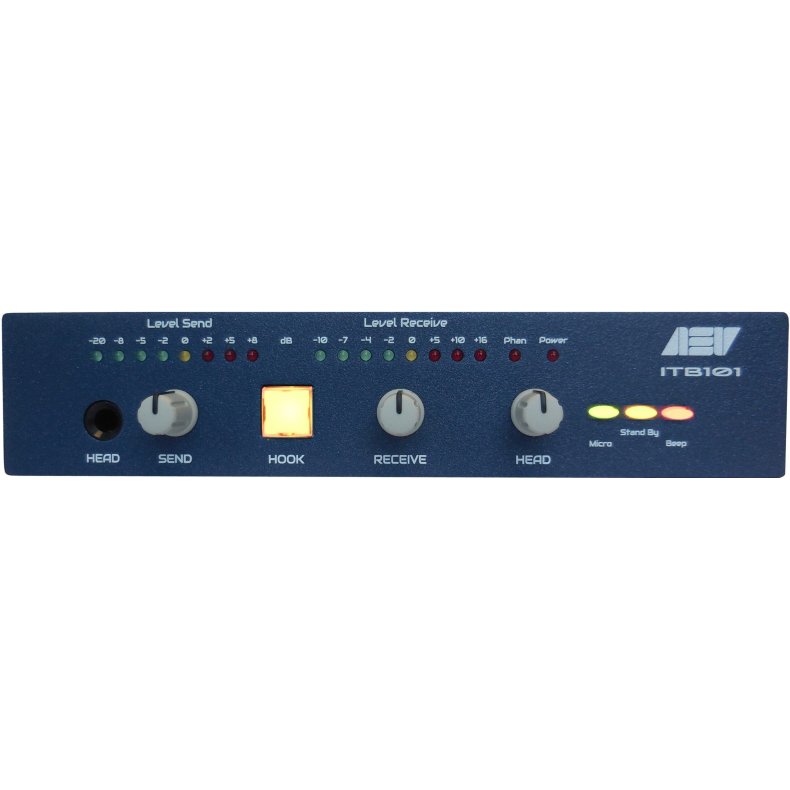

AEV ITB 101- M Telephone Hybrid with Microphone input

AEV ITB 101- M Telephone Hybrid with Microphone input

Model/Product no.: AF-0503040010
Stock status: Shipping within 2-8 working days
Piece

AEV telephone Hybrid ITB 101-M with Microphone input



ITB 101 is a hybrid of high quality , designed to interface the telephone lines with every On Air console and allows to connect one phone line with audio transmission quality.

This product offers long-term reliability and excellent performance at a competetive pricepoint.



  • Telephone Hybrid in broadcast quality
  • balanced audio Inputs and outputs
  • Independent adjustment of SEND (send levels) and RECEIVE (reception)
  • Independent Recording output
  • Monitor audio levels using LED meter (SEND & RECEIVE)
  • Self-latching function
  • Audio jack for headphone monitor with independent level regulation
  • Audio input mode microphone with phantom power supply
  • Remote control GPI/O with DB9 connector
  • Desktop placement with mounting accessories rack 19 1U



AUDIO LEVEL:

Input level (SEND):                    -20  to  +8 dBm

Input impedance:                      >10 KΩ Electronically Balanced

Connector:       XLR female

Output level (RECEIVE):           -10  to  +16 dBm

Output impedance:                   Electronically Balanced (max load 600 Ω)



HYBRID CIRCUIT:

Input/output:   balanced and floating.

Impedance:      600 Ω

RX Level:           – 20 ÷ 0 dBm

TX Level:           – 8 dBm

Hybrid null:      – 40 dB Full Band (on urban telephon line)

Frequency response:                230 ÷ 3400 Hz

Distortion:        0.8 %

Power requirement:                  87 ÷ 265 VAC 50 ÷ 60 Hz

Consumption:  4 VA

Dimension (WxHxD):                desktop: 21 (L) x 13 (D) x 4,4 (H) cm

rack version: 48.3 x 13 x 4.4 cm 1 rack unit



Weight:             1,5 Kg.

Operating Temp. :                     0 ÷ 50° C

Title Type Size Download
AEV-ITB-101_brochure2018.pdf PDF 1.17MB Download
