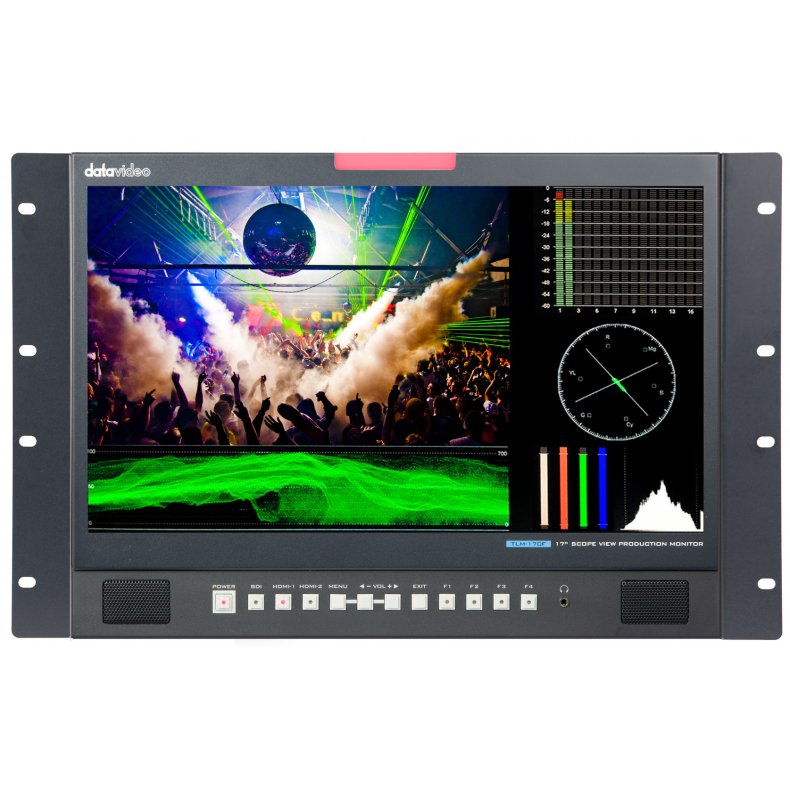

DataVideo TLM-170FR 4K Scopeview 7U Rackmount production monitor (17,3" HD Panel),12G-SDI and 2x HDMI input w loop
TLM-170FR 17” ScopeView Production Monitor-Rack Mount
The TLM-170FR is a rack mount 17-inch 4K UHD LCD monitor which includes a Full HD 1920 x 1080px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 700:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.
The TLM-170F series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170F series are ideal for broadcast and live production applications.
17.3'' 4K UHD Rack Mount Monitor
Supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output
Rich and Natural Color High Brightness and Contrast
The TLM-170FR series apply superior Full HD 1920 x 1080px IPS panel. The high brightness and high contrast panel provides rich color, revealing subtle detail in bright highlights and dark shadow.
Supports Multiple Input and Output Configurations
1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;
1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through
Various Built-In Functions
Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.
Tally Light
Tally light included. Best use for live production.
17" ScopeView Production Monitor
Model Number
TLM-170FR
Screen
17.3" LED Backlit
Chassis
Rack Mount
Resolution
1920x1080
Viewing Angle
(H) +89/-89°
(V) +89/-89°
Luminance/Contrast
300cd/m²
700:1
Video Inputs
1 x 12G SDI
2 x HDMI (2.0)
Loop Through
1 x 12G SDI
1 x HDMI (2.0)
Supported Input Resolutions
SDI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
4096x2160Psf (23.98/24/25/29.97/30)
3840x2160Psf (23.98/24/25/29.97/30)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080Psf (23.98/24/25/29.97/30)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
525i, 625i
HDMI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
720 x480i (NTSC), 720 x576i (PAL)
640 x800, 800 x600, 1024 x768, 1280 x800
Aspect Ratio
16:9, 4:3
Aspect Marker
YES
Safty Marker
YES
Tally LED
Live (Red)
Cued (Green)
Audio In/Out
Input: Embedded Audio (48KHz sampling)
Output: Analog stereo (Phone Jack)
Speaker x 2 (3W)
Special Features
waveform,
vector scope,
Focus Peaking,
False Color,
Exposure (Zebras),
Histogram,
HDR / SDR,
Time Code,
Audio Vector,
Camera Log,
Gamma, Marker,
Pixel to Pixel,
Zoom,
H/V Delay,
DSLR,
Freeze,
Image Flip,
Check Field,
Level Meter,
Color Bar,
Color Calibration.
Dimension (WxHxD)
403 x 305 x 37 mm
Weight
4.7kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 34.6W
What's in the Box
1 x TLM-170FR product
1 x AD Switch DC 12V
1 x Monitor Stand
2 x Velcro
