For-A MV-1620HSA
Compact 1u 16 input 3G/HD/SD-SDI/Composite input Multiviewer. HD-SDI and HDMI output. Includes Windows layout software, Viewer for streaming the MV o/p over IP, error detection local PC record ability. Front control panel. Logo and background display, Clock display
4K-input Support, 16 Channels of Input, HD Dual-Screen Output High Performance With Better Energy Efficiency

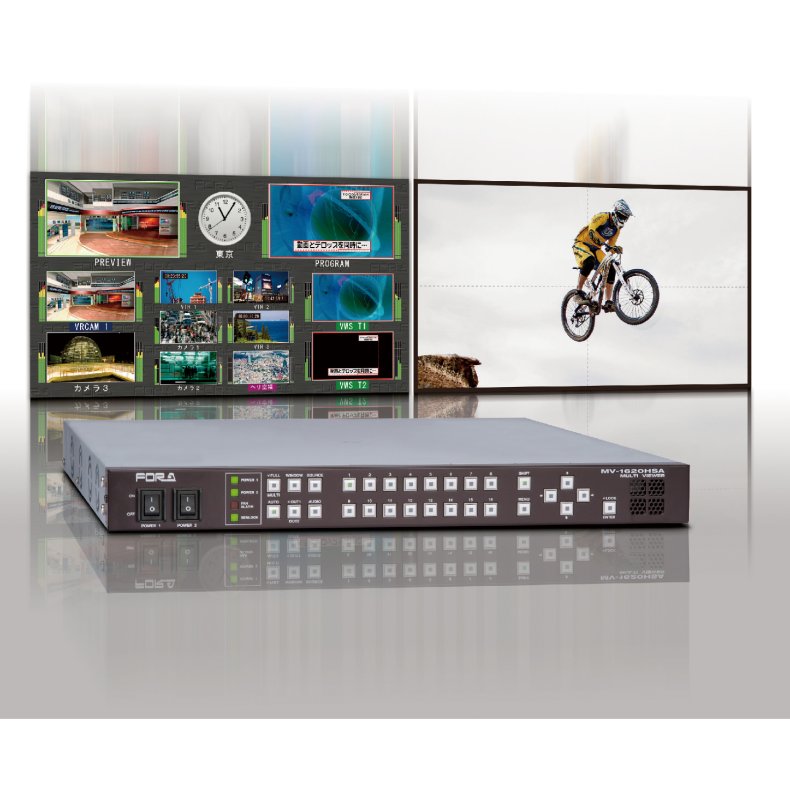

The For-A MV-1620HSA is a compact (1U) multi-viewer that accepts up to 16 channels of mixed 3G/HD/SD-SDI or analog composite signals for monitoring on one or two screens. It can be cascaded with other units to display up to 64 sources at once. Full-featured, the unit offers a customizable window layout. View audio levels and use AFD-compatible cropping or information display as needed.

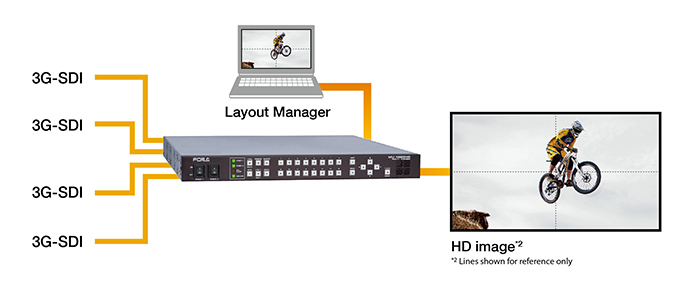

Edit a single 4K image from four 3G-SDI inputs
Layout Manager enables easy layout of 4K video in a seamless display

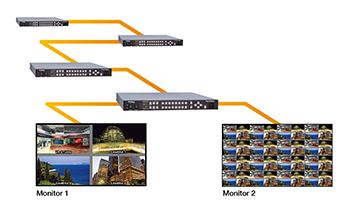

View up to 64 sources at once by cascading four units (4 x 16), with negligible sync signal latency

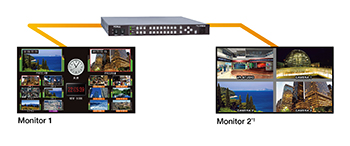

Using One Unit
- View two channels in different layouts
- View up to 20 windows for two channels
- View up to 4 clocks for two channels
- View up to 2 logos and 1 background per output
Cascaded Connection*1
- 1 Using an optional MV-1620DO for dual output
- Connect up to 4 units
- Negligible 6 μs latency at most relative to sync signal
- Use Layout Manager to configure the layout for each device
Features
- Versatile Mixed-Source Environment
- Layout Manager
- Video Streaming
- Record Streamed Video
- HD Output of Source Signals
- Audio Level
- Vertical/Horizontal Level Meter
- Audio Monitoring Output
- Prominent Error Display
- Error Display
- Tally/Title/Timecode/Safety Area
- Logo/Background
- Time, Timer, and Information Display
- Information Display Function
- AFD-Compatible Cropping
- Detection of Closed Captioning
- Additional Features
| Title | Type | Size | Download |
|---|---|---|---|
| FOR-A-MV-1620HSA_Datasheet.pdf | 2.38MB | Download |
