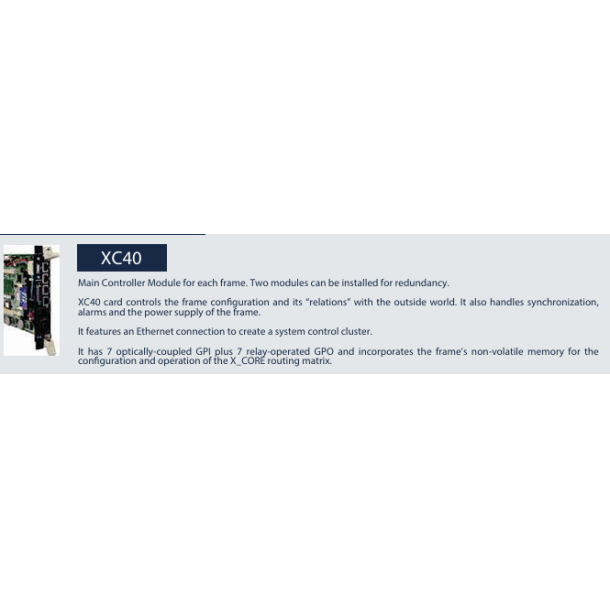

AEQ XC40 Controller Module
Main Controller Module for each frame. Two modules can be installed for redundancy. XC40 card controls the frame conguration and its “relations” with the outside world. It also handles synchronization, alarms and the power supply of the frame. It features an Ethernet connection to create a system control cluster. It has 7 optically-coupled GPI plus 7 relay-operated GPO and incorporates the frame’s non-volatile memory for the conguration and operation of the X_CORE routing matrix.
