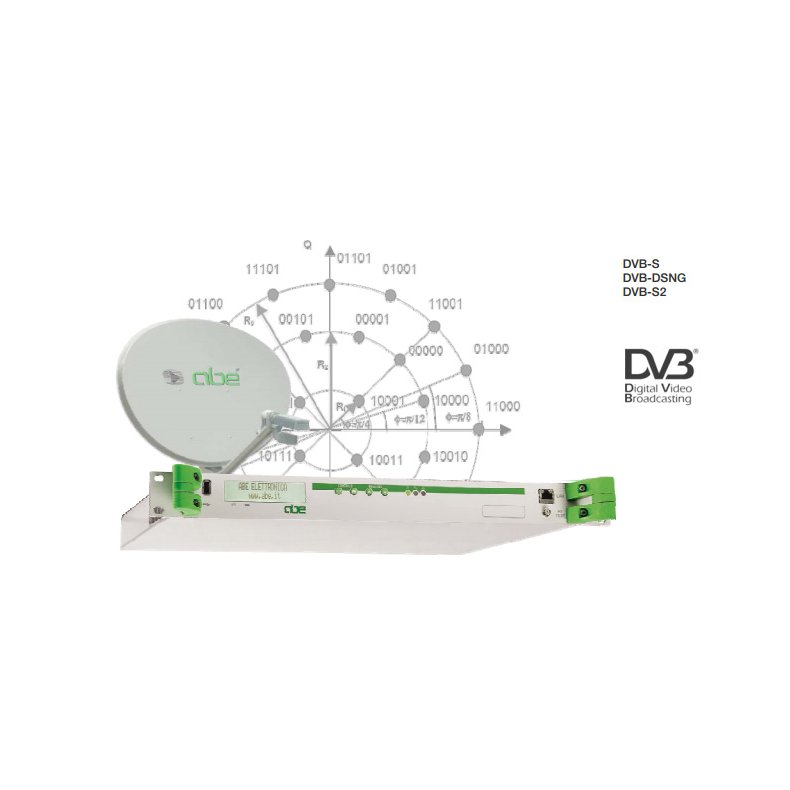

N°2 MPEG-4/H.264 HD/SD Video/Audio 4:2:0 Encoders [2Video + 4Audio (two stereo pair) 2SDI and analog inputs] + DVB-S/S2/DSNG Modulator - QPSK/8PSK/16APSK/32APSK constellations, IF 950 to 1750MHz output, non-linear precorrection. Housing: rack 19 1U
General specifications DVB-S/S2 Modulators:
The ""DME"" series is a high quality, professional, flexible and truly cost-effective solution for Digital Satellite Uplinks (Broadcasting, Distribution, Contribution, DSNG/ENG Mobile news gathering) and terrestrial Microwave Links.
The units consist of a high performance DVB-S/DSNG/S2 Multistandard Modulator with up to four MPEG-2 and/or MPEG-4 (H.264/AVC SD/HD) Encoders in a single 1U rack chassis.
A ""DME"" unit, combined with a BUC and a parabolic antenna for the chosen frequency range (usually Ku or C band), makes a complete satellite uplink solution.
Key Features:
DVB-S / DSNG / S2 Modulator having ""L"" band or 70MHz output for BROADCAST and DSNG applications
All modulation schemes supported (QPSK, 8PSK, 16APSK and 32APSK)
Multistream option, with the possibility of transmitting up to 6 different Transport Streams simultaneously
Digital non-linear pre-correction to linearize Power Amplifiers (HPA) to obtain better performance (power, MER, shoulders.)
Up to 4 real time MPEG-2 (MP@ML - 4:2:0) and/or MPEG-4 (H.264/AVC SD/HD) video/audio Encoders
User-friendly local and remote controls include ""on-board"" display, WEB Server, SNMP and e-mail client
Available as OEM units.
""
General specifications DVB-S/S2 Modulators:
The ""DME"" series is a high quality, professional, flexible and truly cost-effective solution for Digital Satellite Uplinks (Broadcasting, Distribution, Contribution, DSNG/ENG Mobile news gathering) and terrestrial Microwave Links.
The units consist of a high performance DVB-S/DSNG/S2 Multistandard Modulator with up to four MPEG-2 and/or MPEG-4 (H.264/AVC SD/HD) Encoders in a single 1U rack chassis.
A ""DME"" unit, combined with a BUC and a parabolic antenna for the chosen frequency range (usually Ku or C band), makes a complete satellite uplink solution.
Key Features:
DVB-S / DSNG / S2 Modulator having ""L"" band or 70MHz output for BROADCAST and DSNG applications
All modulation schemes supported (QPSK, 8PSK, 16APSK and 32APSK)
Multistream option, with the possibility of transmitting up to 6 different Transport Streams simultaneously
Digital non-linear pre-correction to linearize Power Amplifiers (HPA) to obtain better performance (power, MER, shoulders.)
Up to 4 real time MPEG-2 (MP@ML - 4:2:0) and/or MPEG-4 (H.264/AVC SD/HD) video/audio Encoders
User-friendly local and remote controls include ""on-board"" display, WEB Server, SNMP and e-mail client
Available as OEM units.
""
| Title | Type | Size | Download |
|---|---|---|---|
| DME---ENCODERS,-MODULATOR_2013.pdf | 1.42MB | Download |
