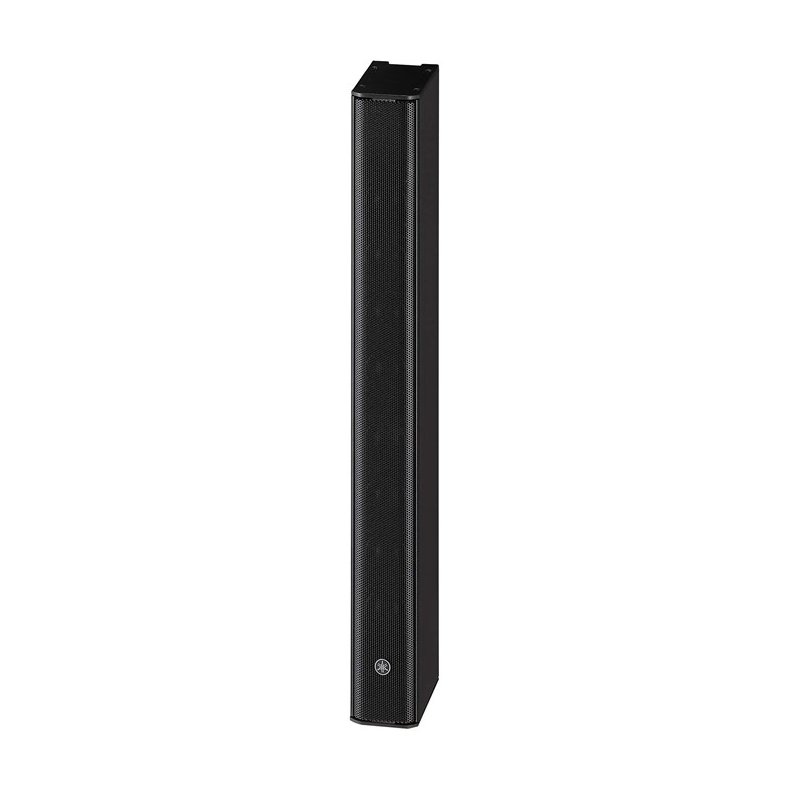

Yamaha VXL1B-16 / VXL1W-16
Slim line array speaker with 16 x 1.5” drivers
- 1.5 inch (3.75 cm) full-range speaker units with neodymium magnets
- Wide horizontal dispersion for uniform SPL over a wide area
- The vertical coverage can be selected from two modes, Normal and Wide
- Slim design complements any interior décor
- Available in basic black or white
- Enclosures can be painted to match surroundings
- Wall mount bracket supplied
- Optional hardware for a wide range of installation needs
Sleek. Smart. Sound.
Yamaha VXL series line array speakers offer a unique combination of outstanding sound quality and slim form that is ideal for a variety of environments.
Line array speakers offer excellent projection as well as uniform volume and sound quality over a wide service area, making them a great choice for multipurpose halls, lecture halls, conference rooms, and other facilities that require maximum intelligibility throughout the listening area.
The VXL series includes three models with different numbers of speaker units. Models can be combined to optimally serve a variety of spaces and situations.
Slim 54-millimeter-wide cabinets and elegantly curved grille designs blend beautifully with any décor while delivering uniform, top-quality sound for speech and music reproduction in a wide range of applications.
Slim Line Arrays Blend High Sound Quality with Visual Elegance
The VXL series cabinets are only 54 millimeters wide, presenting a slim, elegant profile that blends effortlessly with any décor. The key to the slim dimensions of these remarkable speakers is their compact 1.5-inch full-range driver units. Of course visual appeal is not the only goal. These small drivers have been painstakingly designed with neodymium magnets and top-quality materials throughout to deliver natural response right down to 77 Hz* , for full-range performance that is ideal for speech as well as music reproduction.
*In the case of VXL 1 - 24
High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. The sound does not spread in the vertical direction and unnecessary reflection can be avoided, so VXL can delivers high clarity sound to the target area.
The following is a quick reference guide for appropriate selection of the VXL series.
D: Distance from the speaker to the farthest audience*
*The SPL difference between the nearest and the farthest is within 10dB SPL.
Distance D | |
---|---|
VXL1-8 | 9.5m (31 feet) |
VXL1-16 | 13.5m (44 feet) |
VXL1-24 | 25m (82 feet) |
*Distance from the speaker to the nearest audience: 3m
*Distance from the floor to the bottom of the speaker: 1.1m
For much larger space, the use of double speakers in vertical coupling is recommended.
Distance D | |
---|---|
VXL1-16 + VXL1-16 | 33m (108 feet) |
VXL1-24 (upper) + VXL1-16 (lower) | 42m (138 feet) |
VXL1-24 + VXL1-24 | 46m (151 feet) |
*Distance from the speaker to the nearest audience: 4m
*Distance from the floor to the bottom of the speaker: 1.1m
Excellent Scalability
The compact driver units used in the VXL series contribute to wide horizontal dispersion. A rear-panel switch allows vertical dispersion to be expanded downward so that a wide range of applications can be accommodated.** Sound pressure level and coverage can be further adjusted as required by combining models with different numbers of driver units, expanding the range of potential applications.
** VXL1-8 vertical dispersion is fixed
Vertical Coverage Expansion
Vertical coverage can be adjusted via a rear-panel switch. Setting the switch to “Wide” expands the dispersion angle in the downward direction only, improving coverage at the front of the listening area in situations where the speakers are installed at a high location.
Flexible Installation Options
In addition to the supplied wall-mount brackets, a comprehensive range of optional hardware is available for convenient system mounting and setup in just about any environment.
Accessories | Installation | VXL1-8 | VXL1-16 | VXL1-24 | Description | |
---|---|---|---|---|---|---|
Default (Supplied bracket) |
For seamless wall mounting. This bracket does not allow angle adjustment. | |||||
WMB-L1 |
Bracket for 2-axis adjustment of a single array. | |||||
VCB-L1 |
N/A | Bracket for vertical mounting of two arrays, for increased SPL and extra projection. | ||||
VCSB-L1 |
N/A | w/ VXL1-16 w/ VXL1-24 (upper) |
w/ VXL1-16 (lower) w/ VXL1-24 |
Bracket for 2-axis adjustment of a two vertically linked arrays. The VCB-L1 and WMB-L1 are used together. | ||
HCB-L1 |
w/ VXL1-8 |
w/ VXL1-16 |
w/ VXL1-24 |
Bracket for side-by-side mounting of two arrays, for increased SPL and more focused horizontal dispersion that can minimize unwanted reflections from nearby surfaces. | ||
PA-L1 |
Bracket for pole mounting. Suitable pole size Ø35 mm. | |||||
ST-L1 |
Transformer box for high-impedance connections. Ideal for multiple speaker layouts. |
VXL1-16 with included bracket
2 x VXL1-16 with VCSB-L1, VCB-L1 and WMB-L1
2 x VXL1-16 with HCB-L1 and WMB-L1
Dedicated Speaker Presets
The Yamaha VXL series come with dedicated speaker presets to maximize their sound performance according to the type of installation and application.
Speaker Presets (File name) | Description | |
---|---|---|
VXL1-** | For a single speaker, mounted on the wall. | |
VXL1-**_spch | For a single speaker, mounted on the wall. Optimized for speech use. | |
VXL1-**_sub | For a combination with VXS10S/VXS10ST subwoofer, mounted on the wall. Optimized for music playback. | |
VXL1-**_free | For a single speaker, mounted on the pole. | |
VXL1-**_**hc | For double speakers in horizontal coupling, mounted on the wall. | |
VXL1-**_##vc | For double speakers in vertical coupling, mounted on the wall. |
Specifications
|
VXL1B-16 / VXL1W-16 | VXL1B-8 / VXL1W-8 | |
---|---|---|---|
Speaker type | Full-range, Bass reflex | Full-range, Bass reflex | |
Frequency range (-10dB) | 81 Hz – 20 kHz *1, 108 Hz – 20 kHz *1 (with port cover) | 70 Hz – 20 kHz *1, 110 Hz – 20 kHz *1 (with port cover) | |
Nominal coverage | H | 170° | 170° |
V | 25°(+12.5° – -12.5°) (NORMAL), 30°(+12.5° – -15°) (WIDE) | 40°(+20° – -20°) (NORMAL) | |
Effective coverage (-10dB) | H | 180° | 180° |
V | 30°(+15° – -15°) (NORMAL), 45°(+15° – -30°) (WIDE) | 65°(+32.5° – -32.5°) (NORMAL) | |
Components | LF-HF | 1.5” (3.75 cm) Cone × 16 | 1.5” (3.75 cm) Cone × 8 |
Power rating | NOISE | 80 W | 40 W |
PGM | 160 W | 80 W | |
PEAK | 320 W | 160 W | |
Nominal impedance | 12Ω | 16Ω | |
SPL | Sensitivity (1W; 1m on axis) | 91 dB SPL (1 m/1 W) *1 *2 (90 dB SPL with port cover) | 89 dB SPL (1 m/1 W) *1 *2 (88 dB SPL with port cover) |
Peak (Calculated) | 116 dB SPL (1 m) *3 | 111 dB SPL (1 m) *3 | |
I/O connectors | Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) | Euroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²) | |
Protection circuit | Load protection | Full-range power limiting to protecting network and transducers | Full-range power limiting to protecting network and transducers |
Finish | VXL1B-16: Black painting (approximate value: Munsell N3.0), VXL1W-16: White painting (approximate value: Munsell N9.0) | VXL1B-8: Black painting (approximate value: Munsell N3.0), VXL1W-8: White painting (approximate value: Munsell N9.0) | |
Dust and water resistant | IP34 (IP35 with port cover) | IP33 (IP35 with port cover) | |
Packaging | Packaged in 1 pc | Packaged in 1 pc | |
Dimensions (W x H x D) | W54 × H846 × D104 mm (Speaker only), W54 × H846 × D111.5 mm (With included bracket) | W54 × H480 × D104 mm (Speaker only), W54 × H480 × D111.5 mm (With included bracket) | |
Weight | 3.9 kg (Speaker only) | 2.1 kg (Speaker only) |
- *1: Half-space (2 π)
*2: Measured at 2 m; value converted to 1 m is shown (frequency range: 100 Hz – 10 kHz)
*3: Calculated based on power rating and sensitivity, exclusive of power compression.
*0 dBu is referenced to 0.775 Vrms.
