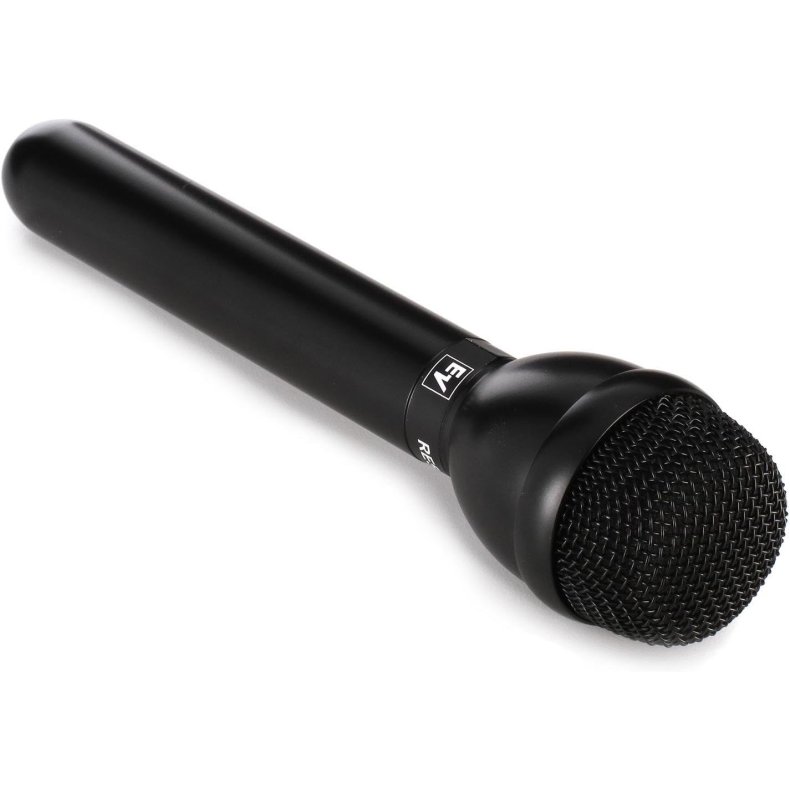

ElectroVoice RE 50N/D B Reporter Microphone Dyn. Black

ElectroVoice RE 50N/D B Reporter Microphone Dyn. Black

Key Features:

• Powerful Electro-Voice neodymium (N/DYM®)
magnet results in greater output than with
standard alnico magnets

• DynaDamp™ shock-isolation system for low
handling noise

• Rugged design

• Finished in semigloss “camera” black

• Comes complete with stand clamp and vinyl
pouch

General Description:

The Electro-Voice® RE50N/D-B shock-mounted, dynamic
omnidirectional microphone is an offspring of the legendary
RE50 microphone. Built with the same rugged design as
the RE50, the RE50N/D-B features a DynaDamp™ shock
mount for greater ruggedness and isolation, and a new
neodymium N/DYM® magnet structure to provide increased
sensitivity required in exacting professional applications.
Ideally suited for handheld broadcast and sound
reinforcement applications, the RE50N/D-B has been built
for superior isolation from mechanically induced noise.
Handling noise, clothing noise, and even cord shock are
isolated from the microphone element.

Within the microphone’s machined-aluminum outercasing, a
DynaDamp™ shock mount (manufactured using an
advanced vibration-isolation material) surrounds the high-
mass internal acoustic chamber and microphone element,
resulting in a degree of isolation unprecedented in an
omnidirectional dynamic microphone. The transducer is
protected through a unique interlocking concept, making
the RE50N/D-B practically indestructible with normal use.
The transducer, fitted within a high-mass internal case, is
shock-isolated within an attractive external case, therefore
protecting the transducer from sudden shock.

The microphone’s diaphragm permits a very smooth response
over a wide frequency range, yet it withstands high humidity
and temperature extremes, corrosive effects of salt air and
severe mechanical shocks. The diaphragm is protected
from dust and magnetic particles by a carefully designed
integral windscreen and blast filter which also provides
excellent protection from wind noise, excessive sibilance
and annoying “P-popping.” The microphone’s
Memraflex™grille is designed to bounce back to its original
shape when bumped or dropped.

Built with the same rugged design as the RE50, this model features a neodymium magnet for increased sensitivity and improved shock mounting using advanced vibration isolation materials. The finish is semi-gloss ‘camera’ black.

Applications: Speech. Frequency response: 80-13000Hz. Sensitivity: 2.2mV/Pascal, open circuit, 1kHz. Dimensions: 197 x 49 (length x maximum diameter) mm. Weight: 269g.
