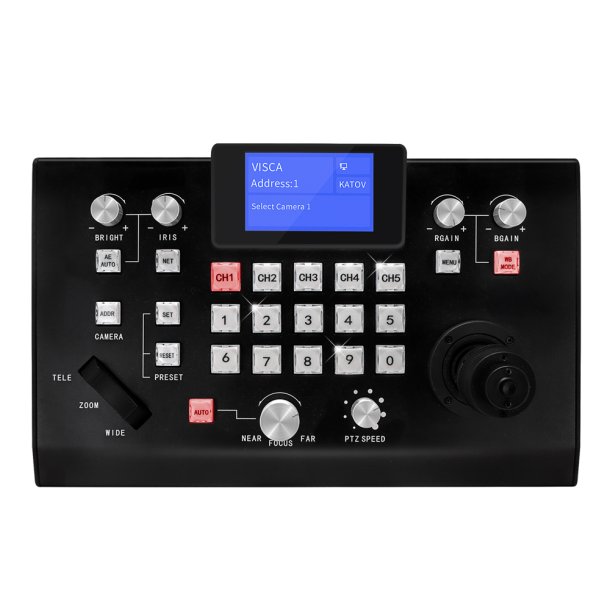

Kato Vision KT-510CN NDI Live Video control switcher
3D NDI PTZ Camera with RS232 RS485 ONVIF VISCA IP POE Keyboard Joystick Controller for Video Conference System.
Product description:
- 5 channels RS232, 5 channels IP shortcut, fast camera selection, support multiple connection methods: LAN / RS232 / RS422 / RS485 at the same time.
- Network protocol support VISCA Over IP, ONVIF(NDI optional).
- Serial port protocol support VISCA, Pelco D, Pelco P.
- Support multiple baud rates: 2400, 4800, 9600, 19200, 38400, 115200.
- VISCA protocol supports automatic address allocation and can display the number of cascade cameras.
- Quickly control the camera focus, exposure, white balance, backlight compensation and other functions by professional broadcast knobs.
- Integrated 3D joystick, can control the camera: Pan, Tilt, Zoom.
- Integrated 3” LCD screen to visually display the current status.
- Integrated Tally interface.
|
Main Parameters |
|
|
Input And Output |
RS232/485: RJ45 x5(CH1-CH5) |
|
|
RS-232: DB9 x1 |
|
|
RS422: 5pin x1 |
|
|
LAN: RJ45 x1 |
|
Serial Port Baud Rate |
2400/4800/9600/19200/38400/115200(Apply to RS-232/RS-422) |
|
Monitor |
3 inch LCD, support Chinese and English display |
|
Speed Control |
Buttons control(corresponding to PTZ, zoom) |
|
3D Joystick |
Yes, support PTZ control |
|
Camera Control |
|
|
Maximum Control Quantity |
IP: 255, VISCA: 7 x5, Pelco P/D: 10 x5 |
|
Control Protocol |
IP: Visca Over IP, Onvif, NDI |
|
|
RS-232/RS-422/485：Visca, Pelco P/D |
|
Exposure Mode Selection |
Support |
|
Aperture Value Adjustment |
Support |
|
Brightness Value |
Support |
|
Adjustment |
|
|
Shutter Speed |
Nonsupport |
|
Adjustment |
|
|
Backlight Compensation |
Support |
|
switch |
|
|
White Balance Mode Selection |
Support |
|
R, B Gain Adjustment |
Support |
|
Focus Mode Selection |
Support |
|
Manual Focus |
Support |
|
General Specifications |
|
|
Input Voltage |
DC 12V (10.8V~13.2V),POE（IP） |
|
Power Consumption |
2W |
|
Operating Temperature |
0°C~40°C,（32°F~104°F） |
|
Storage Temperature |
-20°C~60°C,（-4°F~140°F） |
|
Dimension |
(W)296*(D) 180*(H)115mm |
|
Weight |
1.5kg |
|
Standard Accessories |
Power Adapter(110V AC~220V AC to 12V DC) x1, RS232 cable x1, RJ45 to DB9 RS232 cable, user manualx1 |
Application Field
Church live service, House of worship, Live broadcast of church concert, Educational Recording , Educational Broadcasting ,
Teaching Broadcast, Conference room camera, Esports Broadcast, Events live streaming etc.
| Title | Type | Size | Download |
|---|---|---|---|
| Kato-KT-510CN-brochure.pdf | 223.41KB | Download |
