Ubiquiti Ethernet Surge Protector Gen2
WW-UBI-ETH-SP-G2
Please ask for estimated delivery time
13,50 EUR

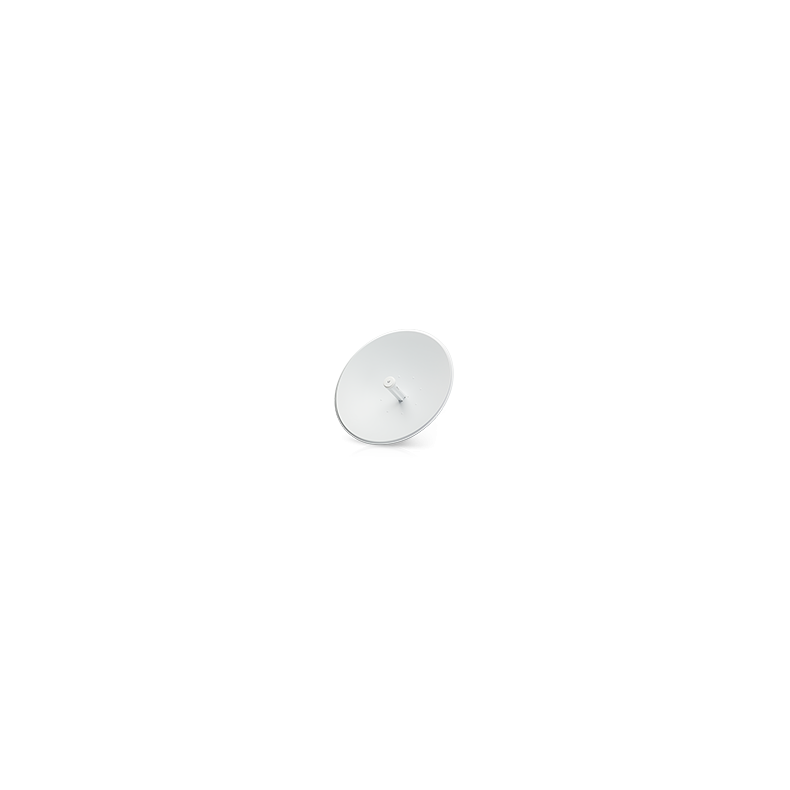

The Ubiquiti PowerBeam M5 620 (PBE-M5-620) has a compact design with uniform beam width, efficient footprint and a faster processor. The PowerBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. The Ubiquiti PowerBeam M5 620 also supports up to 150+ Mbps real TCP/IP throughput.
Ubiquiti PowerBeam M5 620 (PBE-M5-620) Key Features
- Frequency - 5 GHz
- Throughput - 150+ Mbps
- Range - 30+ km
- Uniform Beamwidth Maximises Noise Immunity
- Innovative Mechanical Design
- High-Speed Processor for Superior Performance
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
High-Performance airMAX® Bridge
Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
PBE-M5-620 System and Regulatory/Compliance
- Processor Specs Atheros MIPS 74Kc, 560 MHz
- Memory 64 MB DDR2, 8 MB Flash
- Networking Interface (1) 10/100/1000 Ethernet Port
- Wireless Approvals FCC, IC, CE
- RoHS Compliance Yes
PBE-M5-620 Physical/Electrical/Environmental
- Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")
- Weight 6.4 kg (14.11 lb)
- Power Supply 24V, 0.5A Gigabit PoE
- Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Max. Power Consumption 8.5W
- Gain 29 dBi
- Wind Loading 872 N @200 km/h (196 lbf @125 mph)
- Wind Survivability 200 km/h (125 mph)
- LEDs (1) Power, (1) LAN, (4) WLAN
- Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
- Channel Sizes 5/8/10/20/30/40 MHz
- Polarization Dual Linear
- Enclosure Outdoor UV Stabilized Plastic
- Mounting Pole-Mount Kit Included
- ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
- Operating Temperature -40 to 70° C (-40 to 158° F)
- Operating Humidity 5 to 95% Noncondensing
- Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test IEC 68-2-6
- Temperature Shock Test IEC 68-2-14
- UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency
- Worldwide 5170 - 5875 MHz
| Title | Type | Size | Download |
|---|---|---|---|
| PowerBeam_DS.pdf | 4.69MB | Download |
