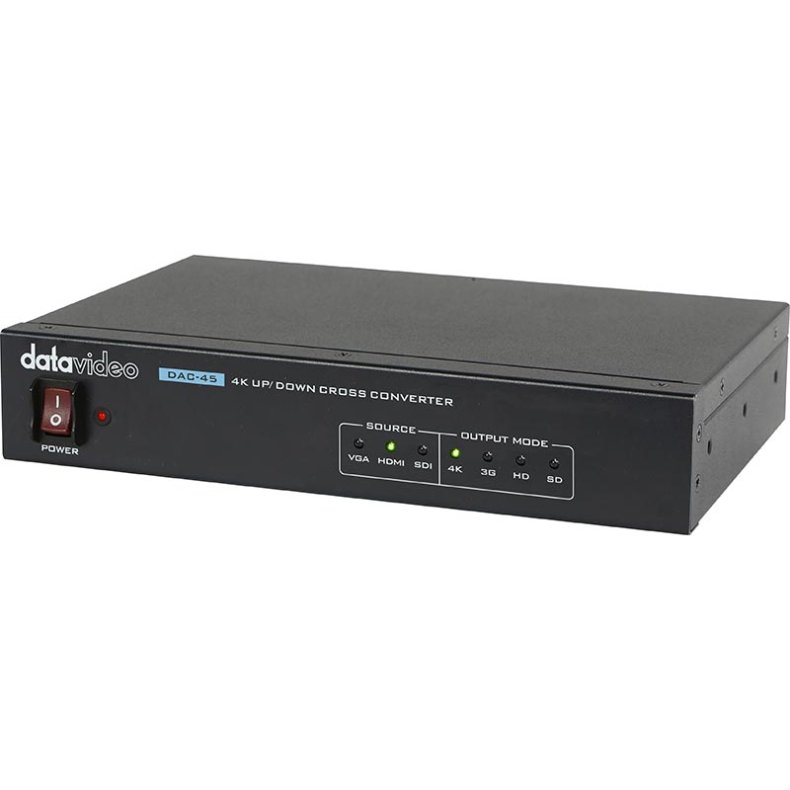

Datavideo DAC-45 4K Up/Down/Cross converter
Datavideo 4K Up/Down/Cross converter designed to convert video signals from VGA, HDMI, SDI with Audio input to 4K HDMI or 3G-SDI output. It allows instant switching between 4K, HD and SD video formats.
HDMI 2.0 input/output with 4:2:2 processing
Supports 3G-SDI Level A/B, Reference input BB and Tri Level Sync
Built in Super Resolution Engine for 4K Up scaling and frame rate conversion
4K up conversion
With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.
Wide range conversion for great compatibility
Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.
External audio embedding
RCA inputs allow audio to be embedded to the output of the video signal.
Specifications
| DAC-45 4K Up/Down Cross Converter | |
|---|---|
| Conversion |
VGA/HDMI/SDI to 4K HDMI/3G-SDI |
| Video Inputs |
1x VGA, 1x HDMI, 1x HD/SD-SDI |
| Video Outputs |
1x SDI, 1x HDMI |
| Audio Inputs |
2x RCA(Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded |
| Audio Outputs |
SDI embedded audio up to 8CH, 48KHz, PCM audio |
| Supported Video Input Formats |
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), |
| Output Resolutions |
2160p(23.98/24/25/29.97/30/50/59.94/60Hz), 1080p(23.98/24/25/29.97/30/50/59.94/60Hz), |
| Equalizer |
Yes |
| Reclock |
Yes |
| SDI Cable Drive |
Yes |
| Dimension (LxWxH) |
220 x 143 x 42 mm |
| Weight |
1 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V, 9.4W |
| What's in the Box |
1 x DAC-45 |
