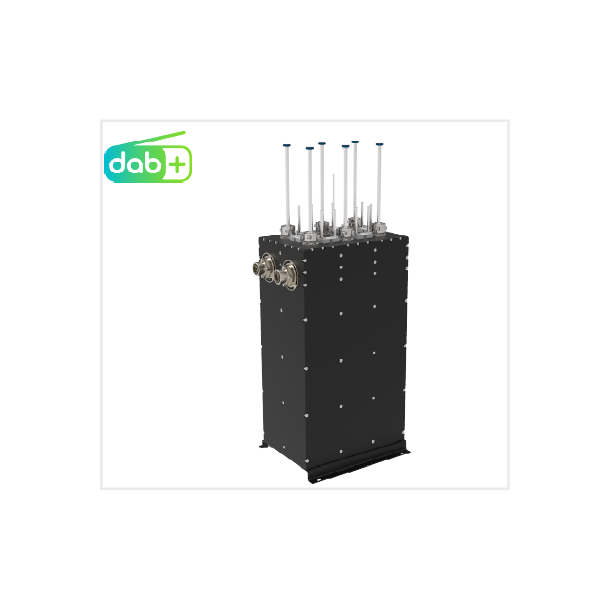

Delta Meccanica BPF36078 400W 6 poles DAB BPF DAB/DMB Filter, Tunable, 174-240 MHz, DC block, 7/16" connectors
DAB 6-pole 78mm Bandpass filter
• Dual Cross-Coupling
• Full-band tunable
• DC-Short
• Temperature compensated
OPTIONS
• Heat Sinks
• Forced Air Cooling
• 19’’ rack frame supports
• Custom rack frame
PRODUCT CODE: BPF36078
No. of POLES 6-pole helliptical
CAVITY SIZE 78 mm
TEMPERATURE STABILITY < 1 kHz/°K
MAX OPERATING TEMPERATURE (body) 65 °C (149 °F)
TEMPERATURE OPERATING
ENVIRONMENT
-5 ÷ 50 °C
23 ÷ 122 °F
CONNECTIONS (2) 7/16 and
PRODUCT CODES
7/16 female (1) BPF36078-22
7/8’’ flange BPF36078-44
7/8’’unflanged BPF36078-66
FREQUENCY RANGE: 174 ÷ 240 MHz
MAXIMUM RMS INPUT POWER (3) 400 W (4)
INSERTION LOSS @ F0 < 1.0 dB (5)
INSERTION LOSS @ F0 ± 0.77 MHz < 2.3 dB (5)
ATTENUATION @ F0 ± 0.97 MHz > 15 dB (5)
ATTENUATION @ F0 ± 1.77 MHz > 45 dB (5)
ATTENUATION @ F0 ± 2.20 MHz > 50 dB (5)
ATTENUATION @ F0 ± 3.00 MHz > 50 dB (5)
BANDWIDTH 1.54 MHz
RETURN LOSS
(VSWR)
< -26 dB
< 1.10
INPUT/OUTPUT IMPEDANCE 50 Ω
HARMONIC ATTENUATION > 50dB up to 500MHz
GROUP DELAY VARIATION < 850 ns
DIMENSIONS 258x220x666 mm
10.2x8.7x26.2 ’’
WEIGHT 19 Kg ( 42 lbs)
