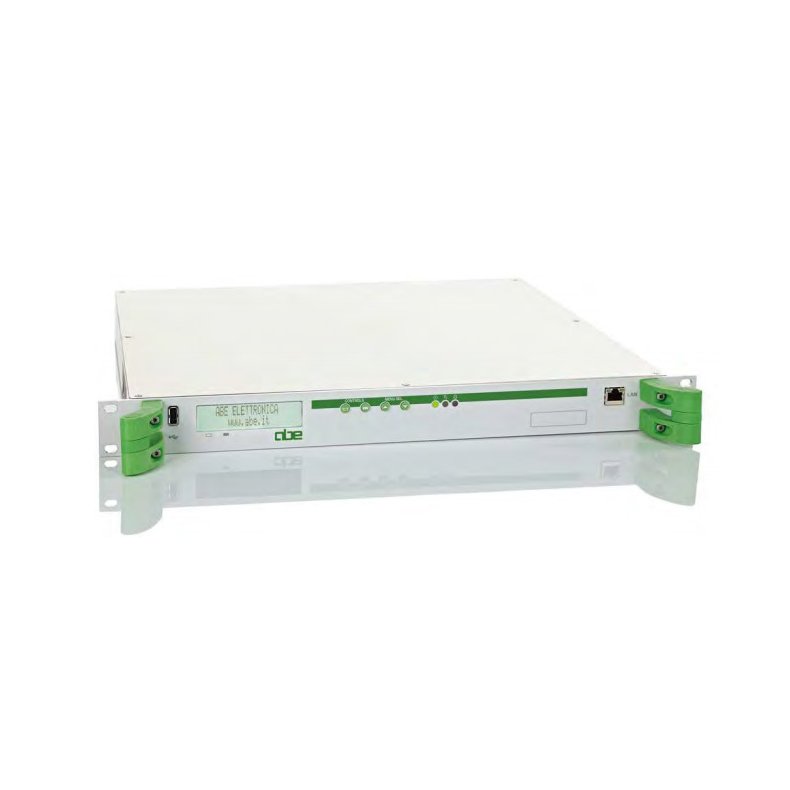

ABE EMX 5002 MPEG-2 2xVideo/Audio Encoder 4:2:0

ABE EMX 5002 MPEG-2 2xVideo/Audio Encoder 4:2:0

Call for price

2 x SDI and analog input - double ASI transport stream output 19'' - 1U rack
Model/Product no.: AB-EMX5002
Stock status: Please ask for estimated delivery time
N°2 MPEG-2 Video/Audio Encoders [MP@ML 4:2:0 2Video + 4Audio (two stereo pair) SDI and analog inputs] double ASI Transport Stream output. Housing: rack drawer 19 1U


General EMX information:

The ""EMX"" series is a high quality, professional, flexible and truly cost-effective solution that combines, in a single unit, one or more high performance MPEG-2 and/or MPEG-4 (H.264/AVC SD/HD) Encoders.

APPLICATIONS
Digital Terrestrial & Satellite TV Broadcasting Head-ends

Digital Satellite Uplinks for Distribution and Contribution

DSNG Mobile news gathering

Digital Microwave Links (Mobile and Fixed - STL)

Webcasting Encoding - IP Streaming



Key Features:
1 to 4 real time MPEG video/audio Encoders in a single 1U Rack drawer

MPEG-4 H.264/AVC Encoder ranging from SD (Standard Definition) to full HD (High Definition)

MPEG-2 MP@ML 4:2:0 Encoder up to full D1 resolution

SDI/HD-SDI inputs with embedded or separate AES-EBU audio (analog SD Video and Audio inputs also available)

Teletext or Closed Captioning extraction from video and reinsertion in the Transport Stream

A re-multiplexing option to combine more units

ASI and/or Ethernet (Transport Stream over IP) output and input interface options

User configurable Encoders settings + easy to recall pre-defined factory settings

Versions with embedded Digital Modulator (e.g.: DVB-S/S2 - see DME series)

User friendly local and remote control includes ""on-board"" display, WEB Server, SNMP and e-mail client

Available as OEM units

""
Title Type Size Download
EMX---MPEG-ENCODERS_2013.pdf PDF 238.44KB Download
