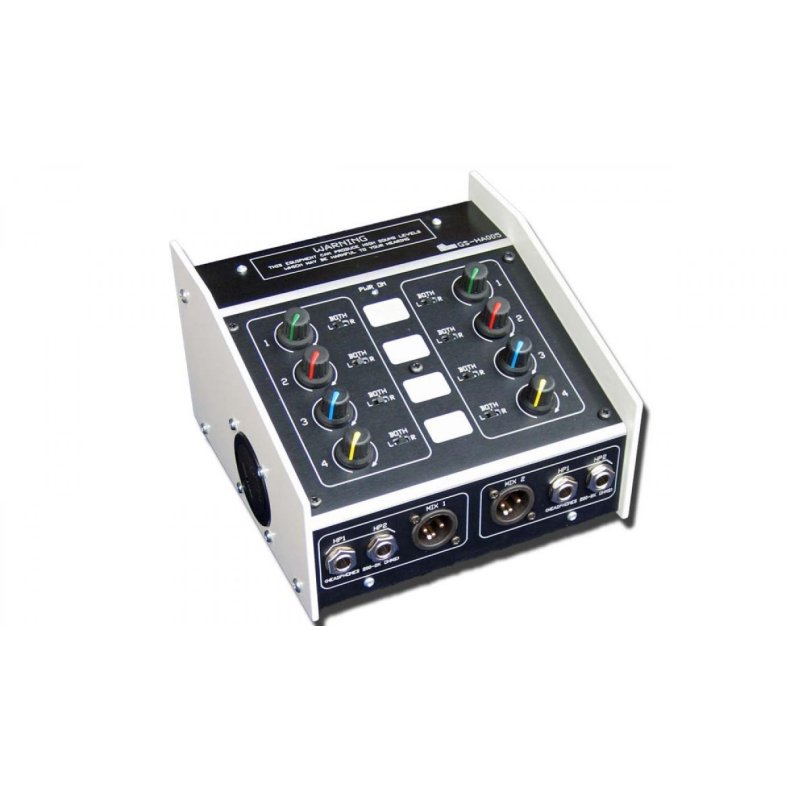

Glensound GS-HA005  4 input twin headphone amplifier with 4 inputs

Glensound GS-HA005 4 input twin headphone amplifier with 4 inputs

Model/Product no.: GS-HA005
Stock status: Please ask for estimated delivery time
Piece

Glensound GS-HA005
Twin Headphone Amplifier With Four Inputs



This robust battery powered twin headphone amplifier has been designed specifically for outside broadcast environments. It has 4 audio inputs (with loop through XLRs for connecting several units together) which are fed through 2 off 4 channel mixers the outputs of which have both a headphone amplifier and a balanced mix out.



  • Powered from 2 x 'D' cells
  • External DC power input (12 - 18volts)
  • Size just 160 x 165 x 104 mm (W x D x H)
  • 4 x audio inputs
  • Loop through audio connectors
  • Transformer balanced inputs for reliability
  • 2 x separate headphone mixes
  • Inputs can be switched to left/ right or both sides of the headphone amplifier
  • 2 x headphone jack outputs for each amplifier
  • Headphone jacks are A/B gauge
  • Designed for 200 to 2kOhm headphone impedances
  • Can run lower impedance (80 Ohm headphones) with reduced battery life
  • 2 x headphone jack outputs for each amplifier
  • Headphone jacks are A/B gauge
  • Balanced mix outputs of the 2 x 4 channel mixers
  • Power on switch
  • 2 x power indicating LEDs. 1 indicates power available from the external DC input and the other that power is available from the batteries.
  • Low battery indication
