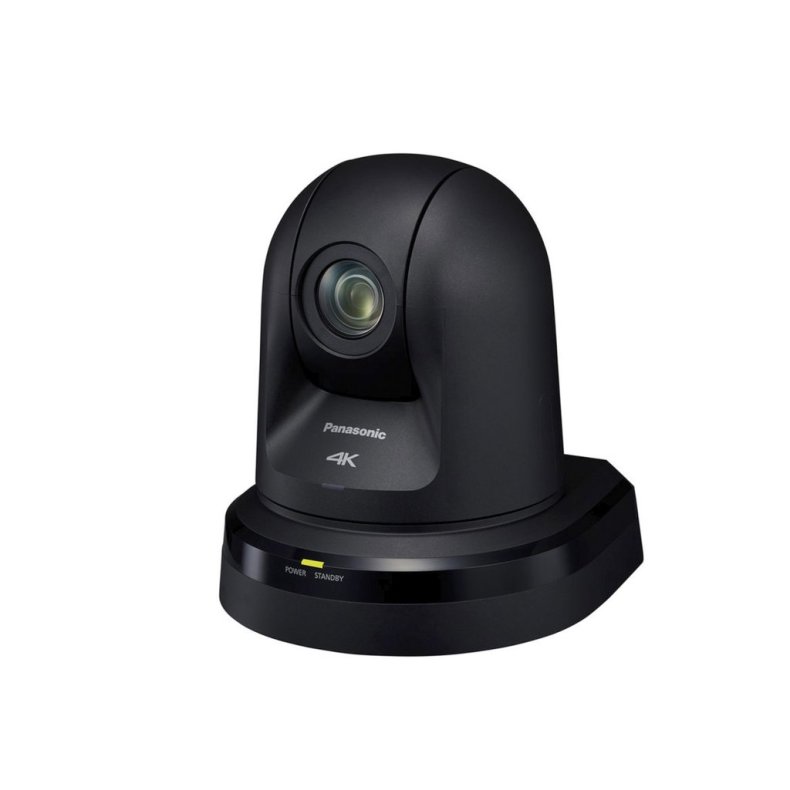

Panasonic AW-UE70 4K Prof. PTZ Camera

Panasonic AW-UE70 4K Prof. PTZ Camera

Model/Product no.: PA-AW-UE70
Stock status: Please ask for estimated delivery time
Piece

Panasonic AW-UE70

Despite its compact size, the AW-UE70 integrated remote camera is able to deliver 4K images with excellent zoom range and exceptional pan-tilt performance. This camera includes a variety of advanced and intelligent features, like in-camera 4K recording or 4K streaming over IP. The AW-UE70 remote camera is ready for the new demands of the industry through ultra HD resolution imagery. 4K images can be obtained in a variety of outputs including HDMI, USB and LAN. Besides its 4K capability, this camera performs extremely well in HD, also supporting 1080/50p format and 3G-SDI output. The camera is available in both black and white to tailor to different environments.

KEY FEATURES
  • Excellent 4K video via HDMI, USB and LAN (UHD: 3840 x 2160 @25p) & HD video via 3G-SDI (up to 1080/50p)
  • Optical zoom 20x, extendable by iA zoom (22x in 4K / 30x in HD) & 1/2.3-type MOS sensor
  • High Dynamic Range function (HDR), suitable for backlit condition
  • A Single Cable Solution for Remote Video and Audio Capture
  • Supports PoE+ (Power over Ethernet+) for lower installation costs

Upgrade & Future Proof Your Remote Camera Systems

The professional video industry's first integrated 4K PTZ camera, the AW-UE70 is your key to best-in-class pan/tilt/zoom 4K IP streaming and in-camera 4K recording. It delivers 3840 x 2160 resolution images at 29.97p/25p via HDMI, and is capable of doing it via IP streaming or in-camera. Featuring key production orientated features such as genlock, Optical Image Stabilization (O.I.S) and remote switchable ND filters.

It's All About the Image

The AW-UE70 features a next-generation 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution up to UHD/30p. With the four-drive lens system, three zoom lenses and one focus lens are driven independently and simultaneously achieving a smaller body and a zoom mechanism with high magnification and high image quality. The AW-UE70W/K has a high-resolution 20x optical zoom and a high-performance iA 22x zoom (4K mode). Built-in optical image stabilization excels in vibration caused by wind, subwoofers/loudspeakers, ventilation systems, and more.

Broadcast & Production Ready

The AW-UE70 is quite a step up from the AW-HE40 introducing broadcast/production oriented feature-sets including a motorized ND filter wheel for varied lighting environments, 3G SDI for up to 1080/59.94p output, external sync input (genlock), and more. Even for HD usage, a higher image quality is achieved with a higher quality lens system which has better focus tracking and evenness throughout the image.

Versatile, Smooth & Lightweight

aw-ue70 FOV image



The pan range of ±175° and the tilt range of -30° to +90° cover a wide shooting area. Pan and tilt operate at a maximum speed of 90°/second and respond quickly to remote control operation. They operate quietly at a sound level of NC35 or lower. Up to 100 preset positions and camera settings are stored in the camera, more than enough for the most demanding large venue installation. The camera weighs only 3.3 lbs. and consumes just over 15.6 watts at 12 VDC.

Connected – Professional Interfacing for all sorts of remote production

aw-ue70 rear panel



Video Outputs: Standard professional interfaces include HD/SD-SDI, HDMI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60p.



Serial Control: RS-422 serial compatibility is available for serial based control workflows (i.e. connection to AW-RP50/120 or previous controllers). RS-232 and RS-422 VISCA protocol is available when introducing a Panasonic camera into an existing control structure.



USB or microSD Card Recording: The mini-USB connector allows the AW-UE70 to be utilized as a USB camera utilizing standard USB Video/Audio class drivers. Many applications that connect to USB cameras, such as teleconferencing or software switching solutions, will be able to connect to the UE70 without external converters. Alternatively, microSD recording enables ISO MP4/H.264 recording internally in the UE70, transfer of content over the network via web browser or FTP.



Network Connected: The LAN port on the UE70 unleashes the possibilities

  • Power of Ethernet+ (PoE+) for easier system installation and setup
  • Control the camera via the network with an AW-RP50/120 hardware controller or Panasonic software solutions
  • Access the built-in web interface to monitor and control all aspects of the camera
  • Utilize a supported third party control system from broadcast control systems, switchers, lecture capture systems, AV Control system and more
  • By default, the camera has a built-in H.264/MJPEG encoder for 7 channels of encoding up to 25Mbps. Pair with a supported hardware or software decoder
  • Available NDI|HX upgrade (a technology of NewTek Inc.) for the ultimate single cable production workflow with Ultra low latency video, audio, control, tally, and power over a single cable (new.tk/ndi_panasonic) or choose the AW-UN70 for out-of-the-box support for NDI|HX

Flexible Installation & Mounting

Blend-in: The camera is exceptionally easy to integrate and is available in two colors (-W: pearl white and -K: black matte) to suit a wide range of applications.



Ceiling Mount: A twist-lock ceiling mount is included as a standard accessory.



Tripod Mount for Mobile Production: The UE70 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.



Wall Mount: An optional heavy-duty wall mount is available in either black (FEC-40WMK) or white (FEC-40WMW).

Specifications

General -
Power Requirements DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply)
Current consumption 1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Allowable Humidity Ranges 20 % to 90 % (no condensation)
Mass Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D) 60 mm x 186 mm x 179 mm
(6-5/16 inches x 7-41/128 inches x 7-3/64 inches) [excluding protrusions, direct ceiling mount bracket]
Finish [AW-UE70W] Pearl white [AW-UE70K ] Metallic black
Controller Supported* AW-RP50, AW-RP120G, AK-HRP200G
Camera Unit -
Imaging Sensors 1/2.3-type MOS
LENS Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches)equivalent: 29.5 mm (1-5/32 inches) to 612.0 mm (24-3/32 inches)]
Focus Switching between auto and manual
Focus Distance Entire zooming range:1.5 m (4.92 ft) Wide end: 10 cm (0.33 ft)
Color separation optical system On-chip color filter system
MINIMUM ILLUMINATION 59.94 Hz:
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation [Frame Mix 6 dB])
Pv6:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
Horizontal Resolution 4K : 1300 TV lines Typ (Center area) HD: 1000 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 48 dB (3 dB step)
Frame mix*3 Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
ND filter Auto 4, Through, 1/4, 4/16, 1/64
Electronic Shutter Speed During Full Auto:
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz]
During Auto:
1/60 to 1/2000 [59.94 Hz]
1/50 to 1/2000 [50 Hz]
During Manua:
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz]
Synchro scan 59.94 Hz:
59.94 Hz to 660.09 Hz (255 step)
Gamma Off, Normal (Low, Mid, High), Cinema
WHITE BALANCE ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)
Chroma Amount Variability -
Scene File Full Auto, Manual1, Manual2, Manual3
Synchronization System Internal synchronization/External synchronization (BBS, Tri-level sync)
Image Stabilization Optical (FHD, 4K)/4-axis hybrid image stabilizer
(FHD) for stable
INPUT -
Power DC 12 V IN, PoE+ (IEEE802.3at standard)
Mic/line input Stereo mini-jack (?3.5 mm)
Input impedance: Approx. 2 k
G/L IN Compatible with BBS (Black Burst Sync) signals and ternary synchronizing signals (BNC x 1)
OUTPUT -
VIDEO OUTPUT HDMI connector
? HDCP is not supported.
? VIERA Link is not supported.
3G/HD SDI OUT:
Compliant with the SMPTE424/SMPTE292M standards/75
INPUT/OUTPUT -
Input/Output Connector LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function
RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-422: CONTROL IN RS422A (RJ-45)
USB: Mini-B port
SD Card: microSD card slot
USB connection * This may vary depending on the operating environment. -
Video Output (USB) USB Video Class Ver1.0
Video Compression Format Motion JPEG
Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Frame rate max 30 fps (59.94 Hz)
max 25 fps (50 Hz)
AUDIO OUTPUT USB Audio Class Ver1.0
Audio Compression Format Linear PCM, 48 kHz, 16-bit, 2 channels
Transfer Modes (JPEG) 3840 x 2160
59.94 Hz: 5fps, 50 Hz: 5fps
Supported models Devices standardly equipped with a USB 2.0 compatible port
Pan-tilt Head Unit -
Installation Method Stand-alone (Desktop) or suspended (Hanging) 5
Pan/Tilt Operation Speed Maximum speed during preset: 300
Panning range -
Tilting Range*5 –30° to 90°*6
Quietness During preset: NC40 or less During manual: NC35 or less
Camera/pan-tilt head control -
IP connecting cable • When connecting through a PoE+ hub:
LAN cable*7 (category 5e or above), max. 100 m (328 ft)
• When a PoE+ hub is not used:
LAN cable*7 (category 5 or above) max.100 m (328 ft)
AW protocol connecting cable LAN cable (category 5 or above,straight cable), max. 1000 m (3280 ft)
Standard protocol connecting cable Mini DIN 8-pin cable, male
SD card recording MPEG-4 AVC file standard compliant (.MP4)
Video compression format (SD) MPEG-4 AVC/H.264 High Profile
Audio compression format (SD) AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Recording format/Bit rate 59.94 Hz:
3840 x 2160/29.97p (Up to 72 Mbps),
1920 x 1080/59.94p (Up to 28 Mbps), 1920 x 1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280 x 720/59.94p (Average 15 Mbps),
1280 x 720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps)
Network -
Transfer modes JPEG:
1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (30fps/15fps/5fps)*8, 50 Hz (25fps/12.5fps/5fps)*8
H.264:
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (60fps*9/30fps/15fps/5fps)*8, 50 Hz (50fps*9/25fps/12.5fps/5fps)*8
Supported protocol Pv4:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast
iOS, Android Support JPEG image display
STANDARD ACCESSORIES Mount bracket for installation surface (Hanging*10 / Desktop): 1, Drop-prevention wire (already attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1, Power cable (1.5 m [4.92 ft]): 1, AC adaptor: 1, CD-ROM: 1
Note *1: It may be necessary to upgrade the version of the controller so that the controller will support the unit.
*2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting.
*4:
