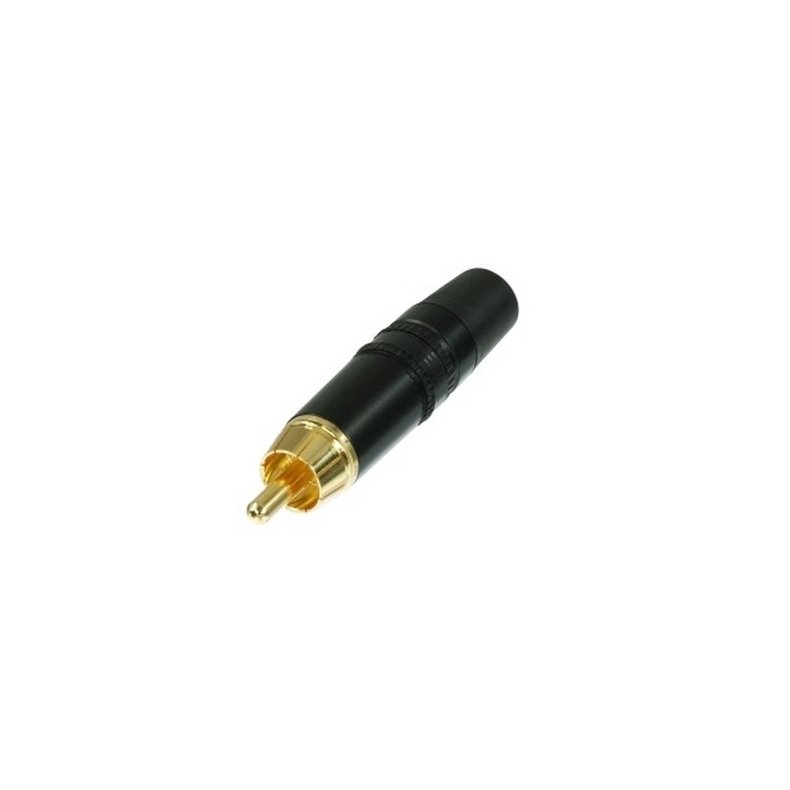

Neutrik NYS373-0 RCA phono jack stick

Neutrik NYS373-0 RCA phono jack stick

Model/Product no.: KI-NYS373-0
Stock status: In Stock! Shipping within 1-3 working days
Piece
Contact resistance < 10 m?
Dielectric strength 0,5 kVdc
Rated current per contact depends on mated connector A
Cable O.D. ? 6 mm
Insertion force ? 20 N
Withdrawal force > 5 N
Lifetime 1000 mating cycles
Wire size 24 AWG
RW / Straight no
Bushing PVC
Contact plating 0.2 µm Au
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1) Black
Strain relief Internal plastic chuck
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
