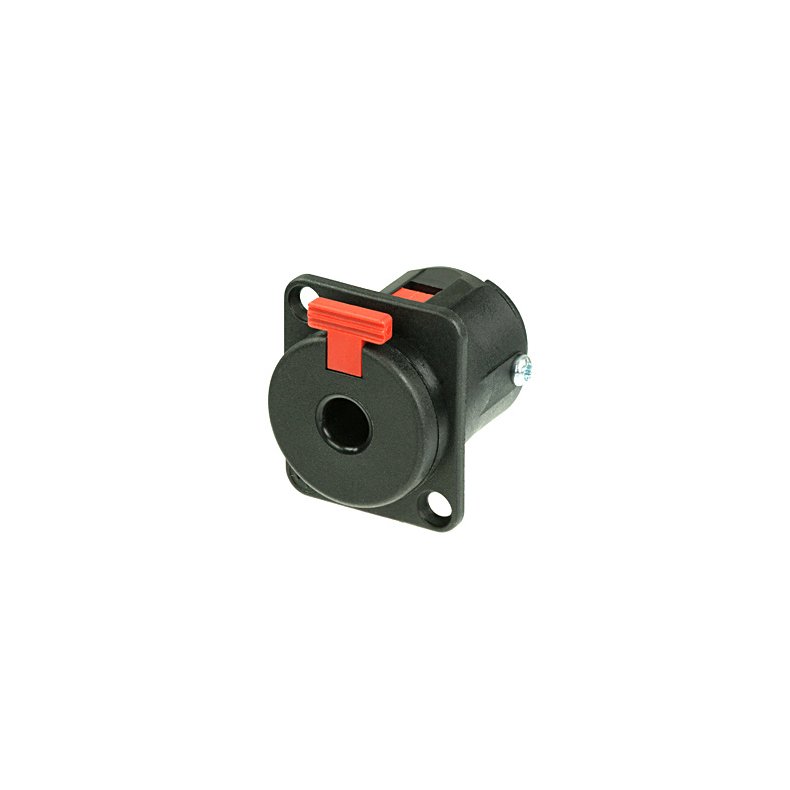

Neutrik NJ3FP6C-B 1/4 inch phone jack

Neutrik NJ3FP6C-B 1/4 inch phone jack

Locking 1/4in phone jack, D-size shell, black metal housing and gold contacts
Model/Product no.: KI-NE-NJ3FP6C
Stock status: In Stock! Shipping within 1-3 working days
Piece
Locking 1/4" phone jack, D-size shell, black metal housing and gold contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Features & Benefits

Securely locking chassis jack
Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
Dimensionally compatible with D Series (31 x 26 mm)
Solder terminals



The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Features:

Securely locking chassis jack
Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
Dimensionally compatible with D Series (31 x 26 mm)
Solder terminals
