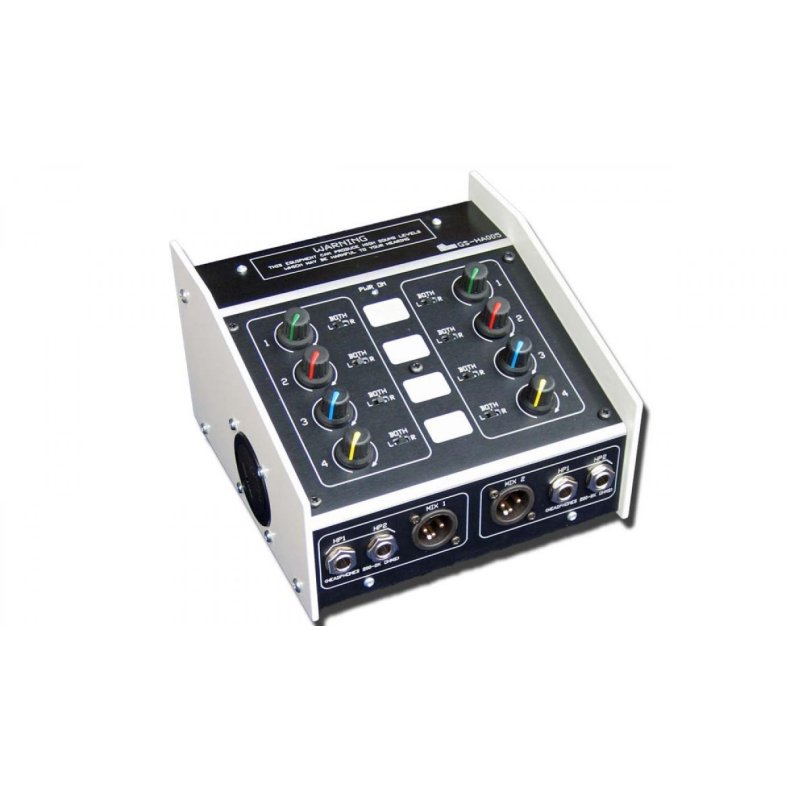

Glensound GS-HA005
Twin Headphone Amplifier With Four Inputs
This robust battery powered twin headphone amplifier has been designed specifically for outside broadcast environments. It has 4 audio inputs (with loop through XLRs for connecting several units together) which are fed through 2 off 4 channel mixers the outputs of which have both a headphone amplifier and a balanced mix out.
- Powered from 2 x 'D' cells
- External DC power input (12 - 18volts)
- Size just 160 x 165 x 104 mm (W x D x H)
- 4 x audio inputs
- Loop through audio connectors
- Transformer balanced inputs for reliability
- 2 x separate headphone mixes
- Inputs can be switched to left/ right or both sides of the headphone amplifier
- 2 x headphone jack outputs for each amplifier
- Headphone jacks are A/B gauge
- Designed for 200 to 2kOhm headphone impedances
- Can run lower impedance (80 Ohm headphones) with reduced battery life
- 2 x headphone jack outputs for each amplifier
- Headphone jacks are A/B gauge
- Balanced mix outputs of the 2 x 4 channel mixers
- Power on switch
- 2 x power indicating LEDs. 1 indicates power available from the external DC input and the other that power is available from the batteries.
- Low battery indication
