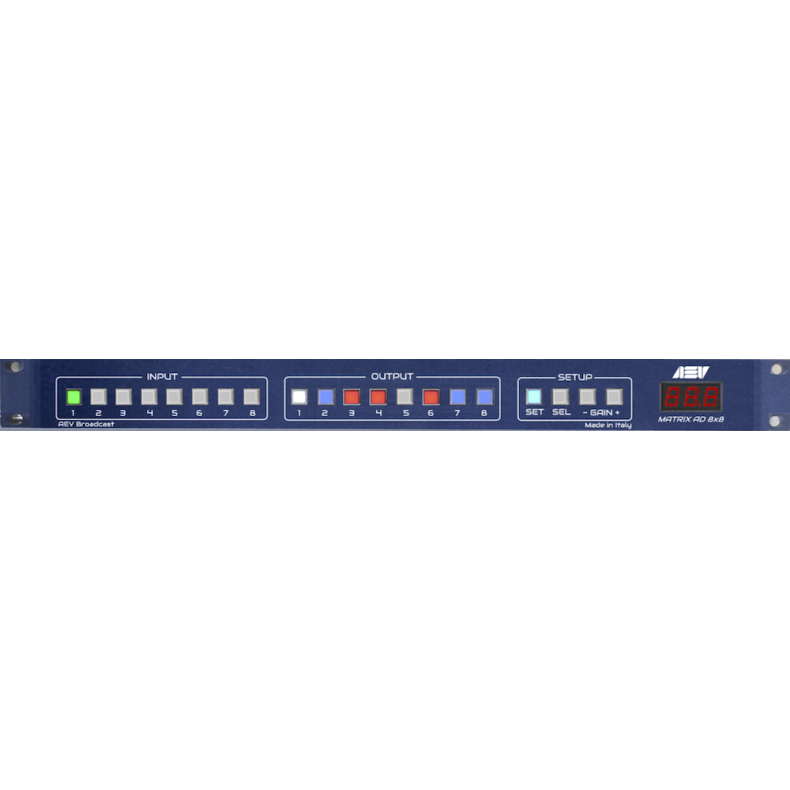

AEV Matrix AD 8x8 analog stereo balanced in/out - digital AES EBU inputs and outputs optional

AEV Matrix AD 8x8 analog stereo balanced in/out - digital AES EBU inputs and outputs optional

Model/Product no.: AF-0502050000
Stock status: Please ask for estimated delivery time
Piece

AEV Matrix 8×8 is a balanced stereo audio matrix with eight inputs and eight outputs. The fields of application can be: in STUDIO and REMOTE (with Lan Option).





Matrix 8×8 is extremely easy to manage manually using the switches on the front panel; in addition, Matrix 88 can also be driven via external software via the Ethernet port (Lan option).

Only one input can be assigned for each output, Matrix 88 does not have the mixer function. The same single input can be replicated on all the outputs or part of them, doing so the function of audio signal distributor.

The extremely small dimensions (1U rack 19 “) and the use of reversible rack mounting supports allow a simple and functional positioning of the apparatus in any operating situation.



Technical Specs

Inputs

Input configuration Electronically balanced

Input Impedance 10 K Ω (600 Ω wired selectable)

Input Max Level +10 dBm

Connector RJ-45

Outputs

Output configuration Electronically balanced

Output Impedance 50 Ω

Output Level Range -6 ÷ +6 dBu

Connector RJ-45

General specifics

Stereo Separation degradation < 1 dB

Distortion @ 1 KHz < 0.01%
Signal to noise ratio < 85 dB (CCIR)
Power requirement 90 – 264 V ~ 50 – 60 Hz

Consumption 4 W

Power supply max power 8 W

Dimension (WxHxD) 48,3 x 19,4 x 4,4 cm 1 rack unit

Weight 2,5 Kg. (5.5 Lbs)

Operating Temp. 0 ÷ 50° C.

Title Type Size Download
matrix8x8-sheet.pdf PDF 1.13MB Download
